Model Viewer web part

The Model Viewer web part of the ADOIT Enterprise Architect for SharePoint enables you to display an ADOIT model as an interactive image in SharePoint and Teams.

With the Model Viewer web part you can:

  • Add an interactive model image from ADOIT to SharePoint and Teams
  • Get a closer look at the parts of the model you are interested in with zoom and drag and drop
  • Get additional information on your model's objects as tooltips by clicking on them
  • Access the model in ADOIT from your web part in SharePoint

How to use the Model Viewer web part

Add a web part to a SharePoint page

While editing a SharePoint page, add an ADOIT Model Viewer by selecting the web part from the Add a new web part dialog.

Model Viewer macro

Once the blank web part is visible, you can open the ADOIT Model Viewer editor by clicking on Edit web part.

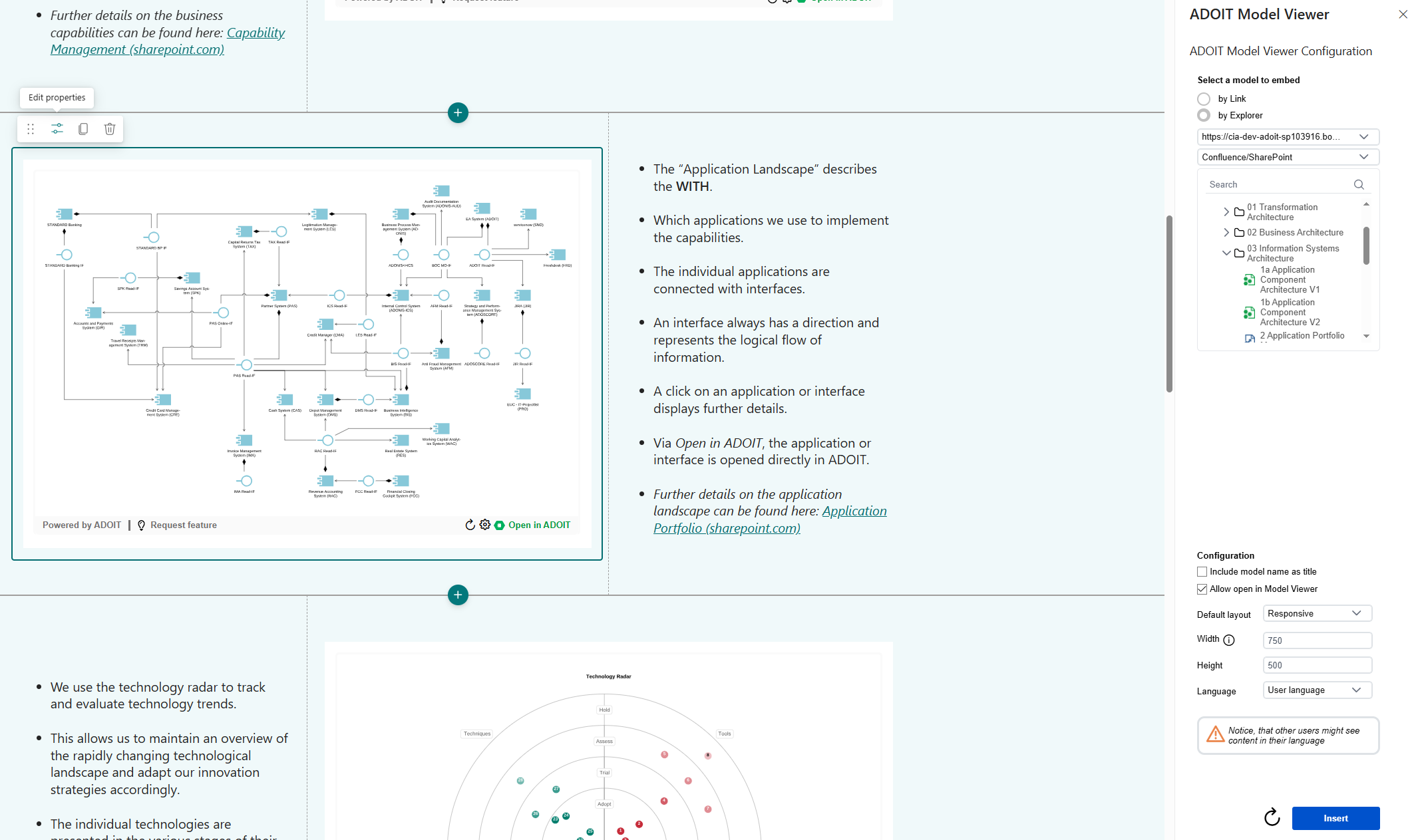

Select Model Viewer Config

A configuration panel opens. Here you can add an ADOIT model URL, search for a specific model name, or select a model in the explorer view.

After selecting the model, you can define the visualization details of your model viewer.

If you don't want to show the name of your model above the model viewer, clear the "Include model name as title" check box.

You can define the width and height of the Model Viewer web part or else keep the default values.

To display a different content language of the model, available languages can be selected. If no model language is selected, the default language of your SharePoint instance is used.

When you are done configuring your model viewer, click "Insert". In case you want to change the visualization later, the model viewer configuration can be adjusted at any time while editing your web part.

View options

With the Model Viewer web part, you can display your model as an interactive image on your SharePoint page and Teams channel.

To zoom in/out of the model displayed in the model viewer, click the "+" and "-" icons.

To reset the zoom level of your model image, so that the complete model can be seen within the Model Viewer web part bounds, click the "Fit" arrow icon.

To maximize the width of the web part, click the "Maximize" arrow icon.

To open the corresponding model in ADOIT, click the "Open in ADOIT" button on the right below the model viewer.

To refresh your model image manually to synchronize its content with your ADOIT instance, click the refresh button on the right on top of your model viewer. A refresh is needed for example, if the model language of the web part has been changed.

To get additional information about the model's objects as tooltips, directly click on the objects.

Model Viewer

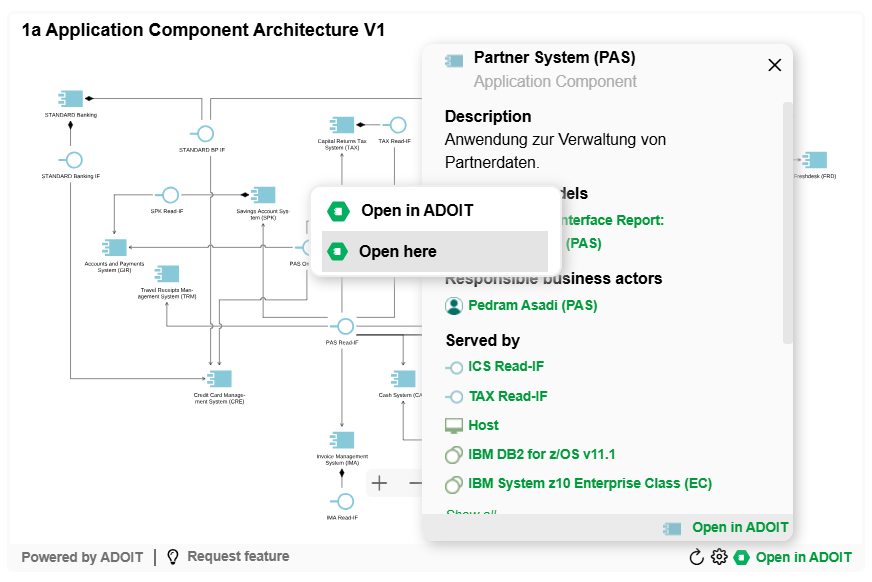

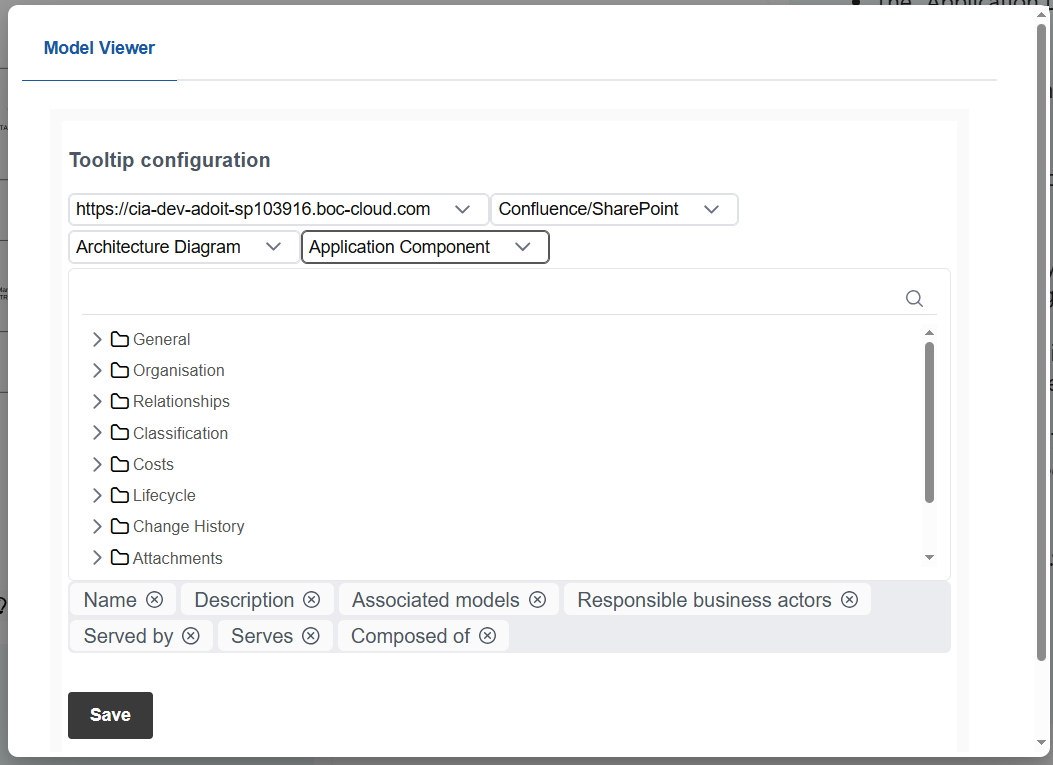

Model Viewer object tooltips

By clicking on a visible ADOIT object, a tooltip displays the name and description of the object. With Open in ADOIT the notebook of the object with further details can be opened directly in ADOIT.

ADONIS Model Viewer

Add a Model Viewer to a Teams channel

Please see ADOIT web parts App for details.
