Model Viewer web part

The Model Viewer web part of the ADONIS Process Manager for SharePoint enables you to display an ADONIS model as an interactive image in SharePoint and Teams.

With the Model Viewer web part you can:

  • Add an interactive model image from ADONIS to SharePoint and Teams
  • Get a closer look at the parts of the model you are interested in with zoom and drag and drop
  • Get additional information on your model's objects as tooltips by clicking on them
  • Access the model in ADONIS from your web part in SharePoint

How to use the Model Viewer web part​

Add a web part to a SharePoint page​

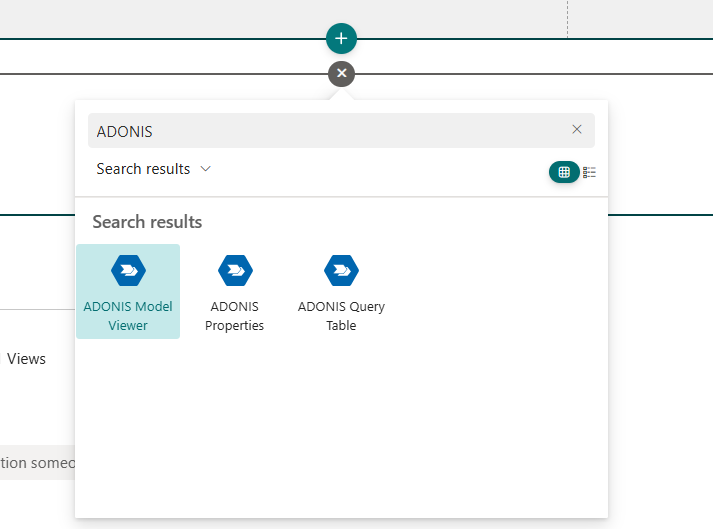

While editing a SharePoint page, add an ADONIS Model Viewer by selecting the web part from the Add a new web part dialog.

Select ADONIS Model Viewer macro

Once the blank web part is visible, you can open the ADONIS Model Viewer editor by clicking on Edit properties.

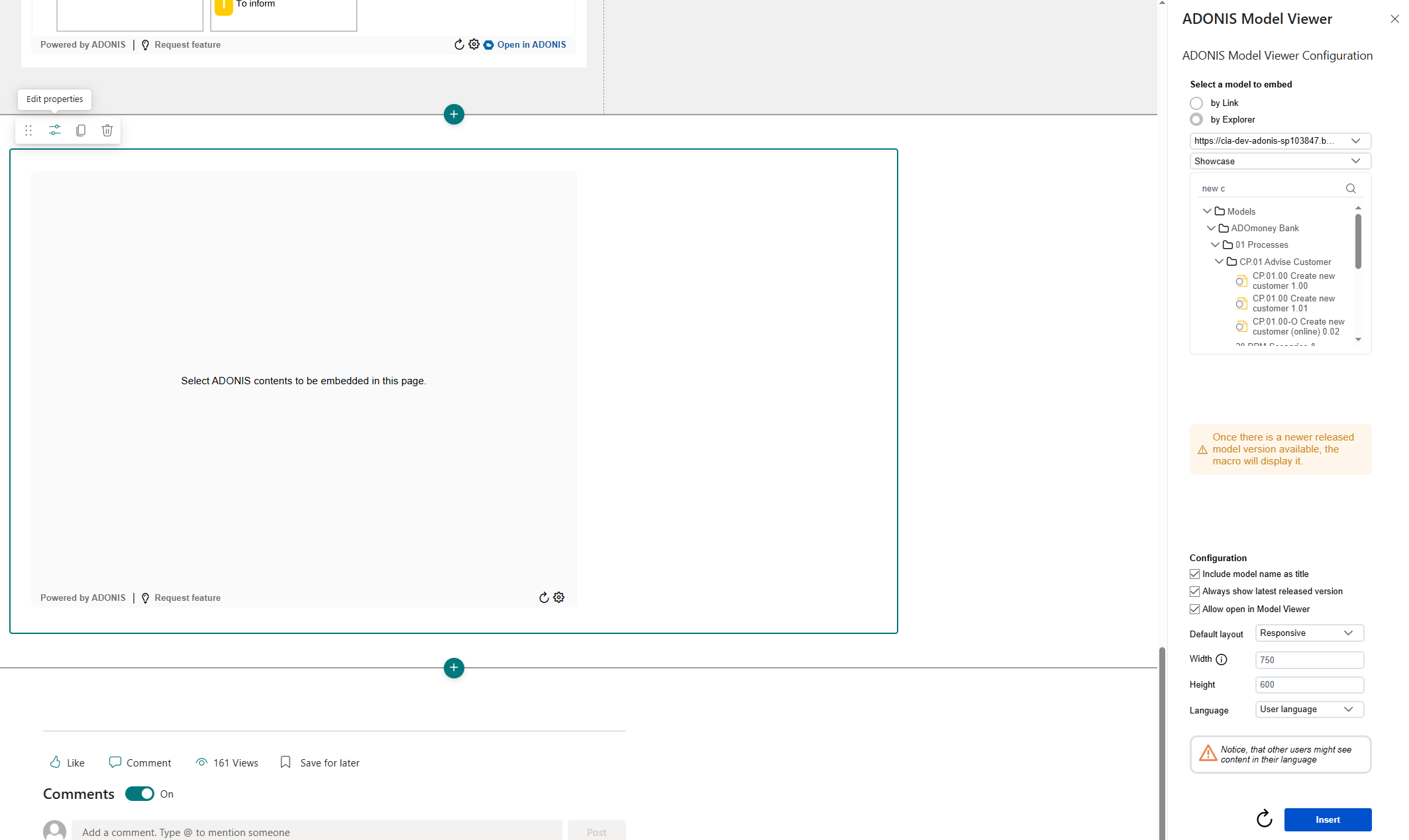

Select ADONIS Model Viewer Config

A configuration panel opens. Here you can add an ADONIS model URL, search for a specific model name, or select a model in the explorer view.

After selecting the model, you can define the visualization details of your model viewer.

If you don't want to show the name of your model above the model viewer, clear the "Include model name as title" check box.

Always show latest released version: By selecting this checkbox the web part will always try to determine if there is a newer version of the model or object which is already in state Released. For example, you select a model which is currently in version 1.0. While a new draft is created and this draft is then sent to methodical / business review, Confluence will still show the released model version 1.0. Once the model has been released in your ADONIS, Confluence will automatically show the new version 2.0. This option is only visible for object and model types with an enabled ADONIS release workflow.

Allow open in Model Viewer: When active, it is possible to open referenced models directly in the same Model Viewer web part.

As Default layout, Responsive or Fixed can be choosen. Responsive uses dynamically the whole available width and the manually defined height. Fixed uses the manually defined width and height.

You can define the width and height of the Model Viewer web part or else keep the default values. Width impacts only the default layout fixed.

To display a different content language of the model, available languages can be selected. If no model language is selected, the default language of your SharePoint instance is used.

When you are done configuring your model viewer, click "Insert". In case you want to change the visualization later, the model viewer configuration can be adjusted at any time while editing your web part.

View options​

With the Model Viewer web part, you can display your model as an interactive image on your SharePoint page and Teams channel.

To zoom in/out of the model displayed in the model viewer, click the "+" and "-" icons.

To reset the zoom level of your model image, so that the complete model can be seen within the Model Viewer web part bounds, click the "Fit" arrow icon.

To maximize the width of the web part, click the "Maximize" arrow icon.

To open the corresponding model in ADONIS, click the "Open in ADONIS" button on the right below the model viewer.

To refresh your model image manually to synchronize its content with your ADONIS instance, click the refresh button on the right on top of your model viewer. A refresh is needed for example, if the model language of the web part has been changed.

To get additional information about the model's objects as tooltips, directly click on the objects.

ADONIS Model Viewer

Model Viewer object tooltips​

The Model Viewer tooltips enable you to get attribute information of an object with a single click.

With a tooltip you can:

  • Get the attribute values of the selected object
  • Get relations of the selected object
  • Access the object in ADONIS

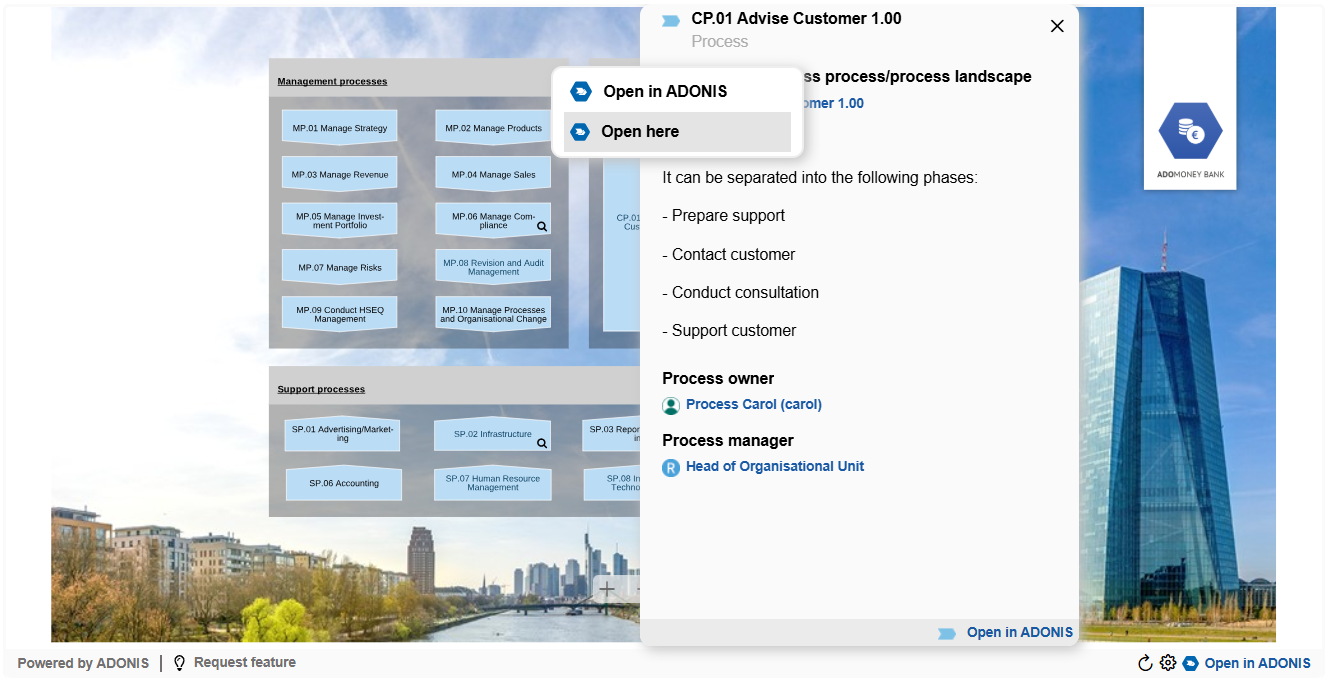

Example of a Model Viewer tooltip:

Tooltip

By clicking on a blue relation, a dialog is opened:

  • Open in ADONIS: Leads directly to the notebook of this object or model in ADONIS

  • Open here (only for model relations): Opens the target model in the same Model Viewer web part

Create a new comment (requires ADONIS 17 or newer)​

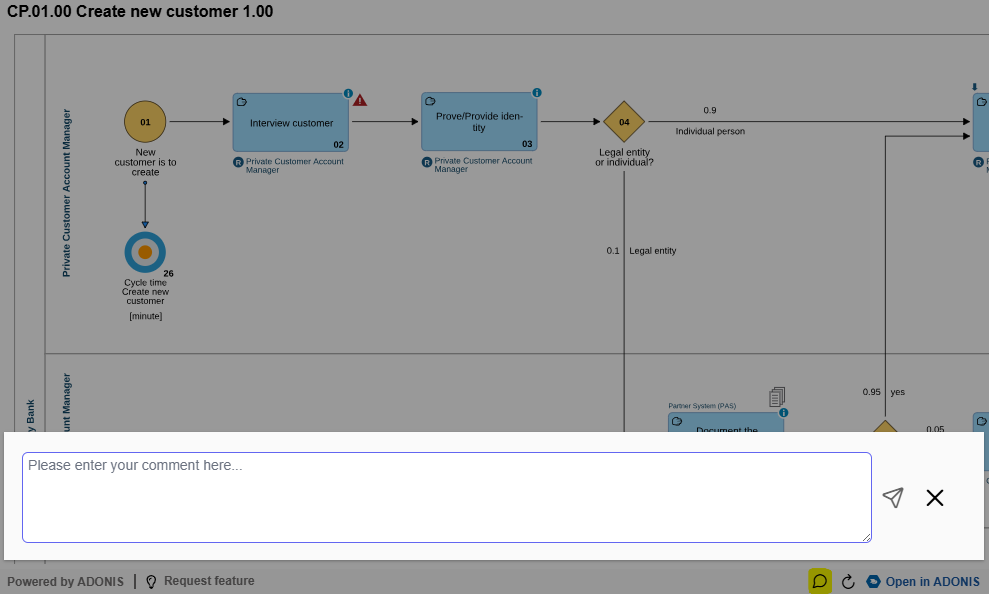

To create a new comment for the displayed model, just click on the comment icon in the Model Viewer footer, add your comment to the input field and click on the send icon.

Add comment

How to configure the Model Viewer web part​

Visible attributes and relations in the tooltip​

To define the attributes and relations that are visualized in tooltips, open Configure on your user page.

Here you can add attributes and relations from the tree view to the selected object.

Config

Add a Model Viewer web part to a Teams channel​

Please see ADONIS web parts App for details.
