Model Viewer web part

The Model Viewer web part of the ADONIS Process Manager for SharePoint enables you to display an ADONIS model as an interactive image in SharePoint and Teams.

With the Model Viewer web part you can:

  • Add an interactive model image from ADONIS to SharePoint and Teams
  • Get a closer look at the parts of the model you are interested in with zoom and drag and drop
  • Get additional information on your model's objects as tooltips by clicking on them
  • Access the model in ADONIS from your web part in SharePoint

How to use the Model Viewer web part

Add a web part to a SharePoint page

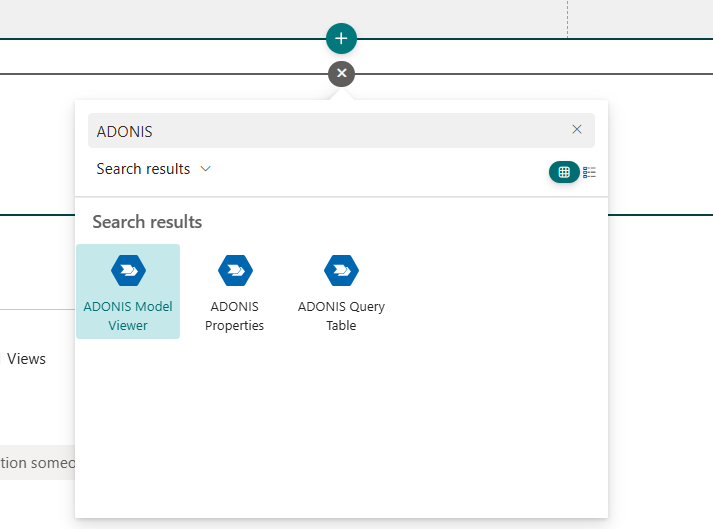

While editing a SharePoint page, add an ADONIS Model Viewer by selecting the web part from the Add a new web part dialog.

Select ADONIS Model Viewer macro

Once the blank web part is visible, you can open the ADONIS Model Viewer editor by clicking on Edit web part.

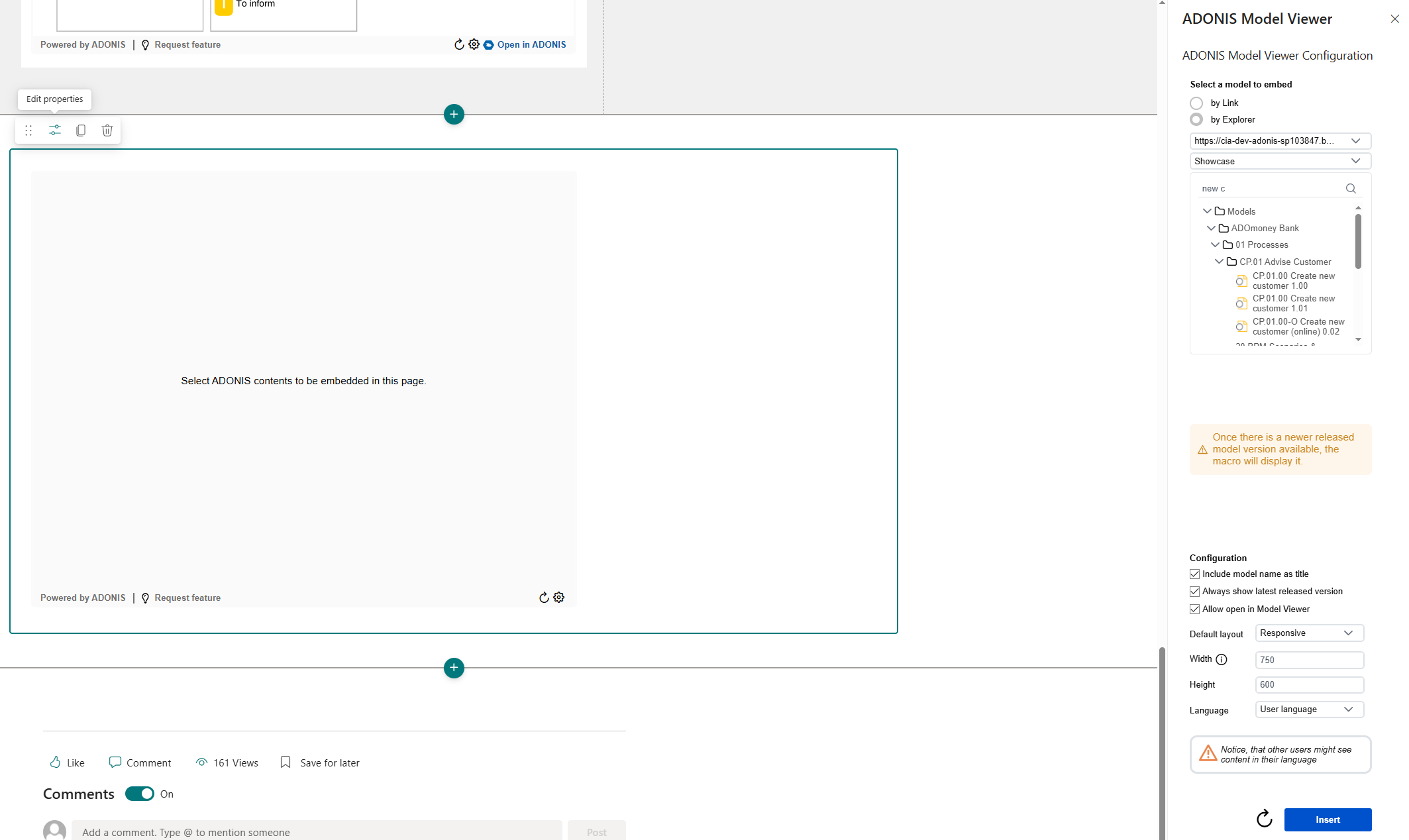

Select ADONIS Model Viewer Config

A configuration panel opens. Here you can add an ADONIS model URL, search for a specific model name, or select a model in the explorer view.

After selecting the model, you can define the visualization details of your model viewer.

If you don't want to show the name of your model above the model viewer, clear the "Include model name as title" check box.

Always show latest released version: By selecting this checkbox the macro will always try to determine if there is a newer version of the model or object which is already in state Released. For example, you select a model which is currently in version 1.0. While a new draft is created and this draft is then sent to methodical / business review, Confluence will still show the released model version 1.0. Once the model has been released in your ADONIS, Confluence will automatically show the new version 2.0. This option is only visible for object and model types with an enabled ADONIS release workflow.

As Default layout, Responsive or Fixed can be choosen. Responsive uses dynamically the whole available width and the manually defined height. Fixed uses the manually defined width and height.

You can define the width and height of the Model Viewer web part or else keep the default values. Width impacts only the default layout fixed.

To display a different content language of the model, available languages can be selected. If no model language is selected, the default language of your SharePoint instance is used.

When you are done configuring your model viewer, click "Insert". In case you want to change the visualization later, the model viewer configuration can be adjusted at any time while editing your web part.

View options

With the Model Viewer web part, you can display your model as an interactive image on your SharePoint page and Teams channel.

To zoom in/out of the model displayed in the model viewer, click the "+" and "-" icons.

To reset the zoom level of your model image, so that the complete model can be seen within the Model Viewer web part bounds, click the "Fit" arrow icon.

To maximize the width of the web part, click the "Maximize" arrow icon.

To open the corresponding model in ADONIS, click the "Open in ADONIS" button on the right below the model viewer.

To refresh your model image manually to synchronize its content with your ADONIS instance, click the refresh button on the right on top of your model viewer. A refresh is needed for example, if the model language of the web part has been changed.

To get additional information about the model's objects as tooltips, directly click on the objects.

ADONIS Model Viewer

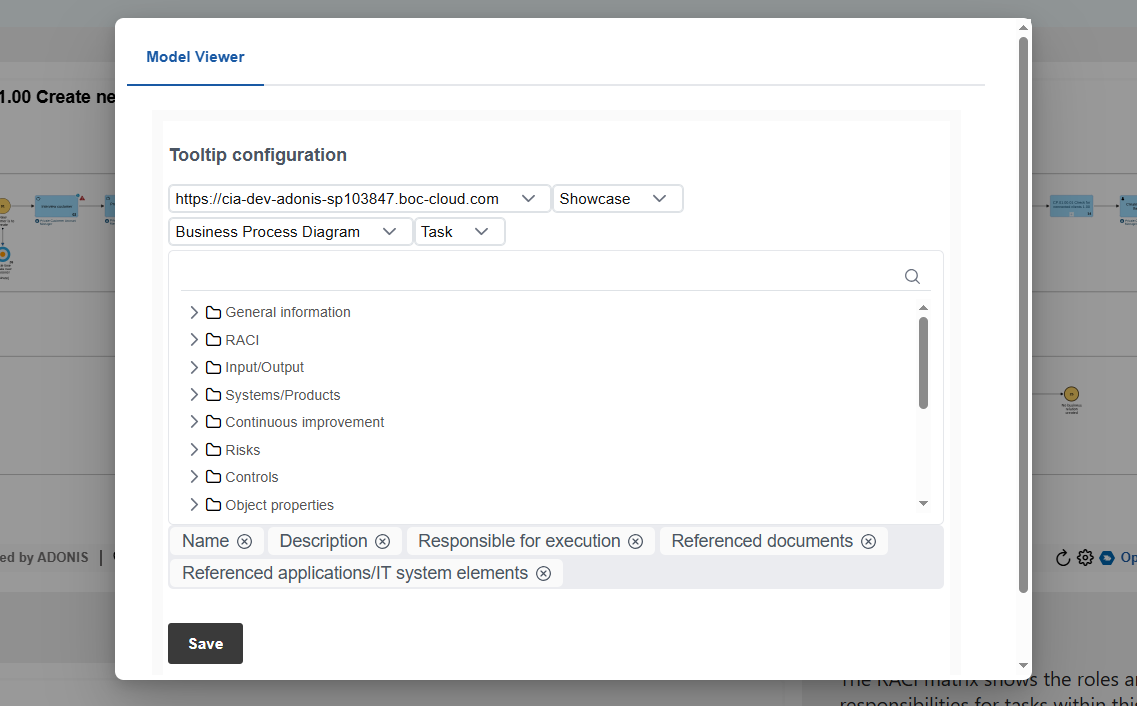

Model Viewer object tooltips

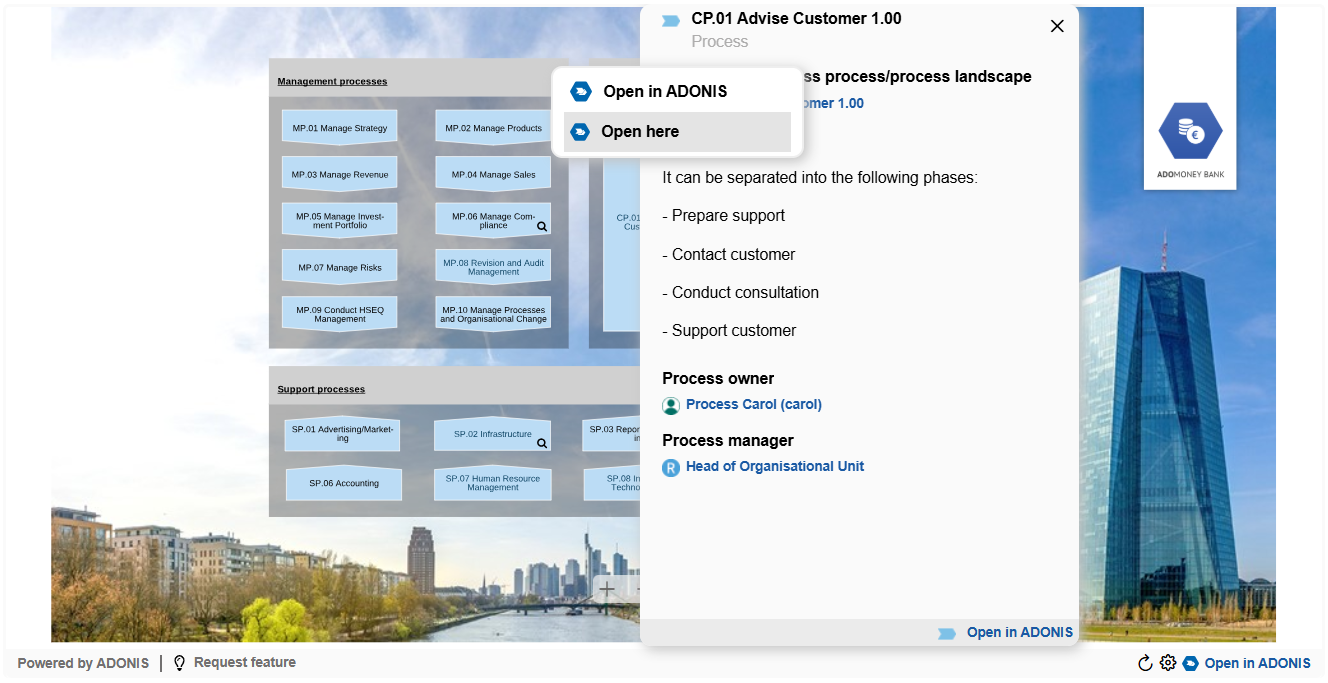

By clicking on a visible ADONIS object, a tooltip displays the name and description of the object. With Open in ADONIS the notebook of the object with further details can be opened directly in ADONIS.

ADONIS Model Viewer

Add a Model Viewer web part to a Teams channel

Please see ADONIS web parts App for details.
