Installation Manual
1. Overview
This section describes
the installation of the ADONIS Process Manager for SharePoint app for Microsoft SharePoint Online
the set-up of the connection between the SharePoint instance and one or more ADONIS instances
2. Where to get ADONIS Process Manager for SharePoint
The ADONIS Process Manager for SharePoint app can be found on Microsoft AppSource.
3. Configuration of ADONIS
This chapter describes the needed configuration to allow access to the ADONIS instances by ADONIS Process Manager for SharePoint.
In order to use ADONIS Process Manager for SharePoint with your ADONIS instances, the Standard RESTful services module must be licensed and enabled for each of them!
3.1. REST API with OAuth 2.0
Detailed documentation can be found here:
Please note that some specific settings are required:
- Administration Toolkit REST scenarios required (more details)):
Repository read APIs
Repository search APIs
Users read APIs
Metamodel read APIs
The configuration should look similar to the screenshot. Please note, that changes have to be saved by clicking on OK.
- OAuth 2.0 client configuration (more details):
Type: Public
ID: boc-cia-sca
Redirect URI: https://shared-components.boc-cia.com/handlers/oauth
The configuration should look similar to the screenshot. Please note, that changes have to be saved by clicking on Save in the Client Data dialogue and Save changes at the bottom right corner of the OAuth 2.0 screen.
REST API and OAuth 2.0 configurations require a restart of the ADOIT environment.
3.2. ADONIS CORS policy
For ADONIS Versions older than 14.1.14 or 15.0.9
All ADONIS REST API requests are sent directly from the client web browser. To allow such requests, the following settings of the adoxx_web.properties server file must be set to true:
for all requests: security.rest.allow.cors
for OAuth 2.0 authentication process requests: security.allow.cors
If you are using ADONIS as SaaS, you can contact hotline@boc-group.com to configure the CORS policy.
For ADONIS Versions 14.1.14 or 15.0.9 and newer

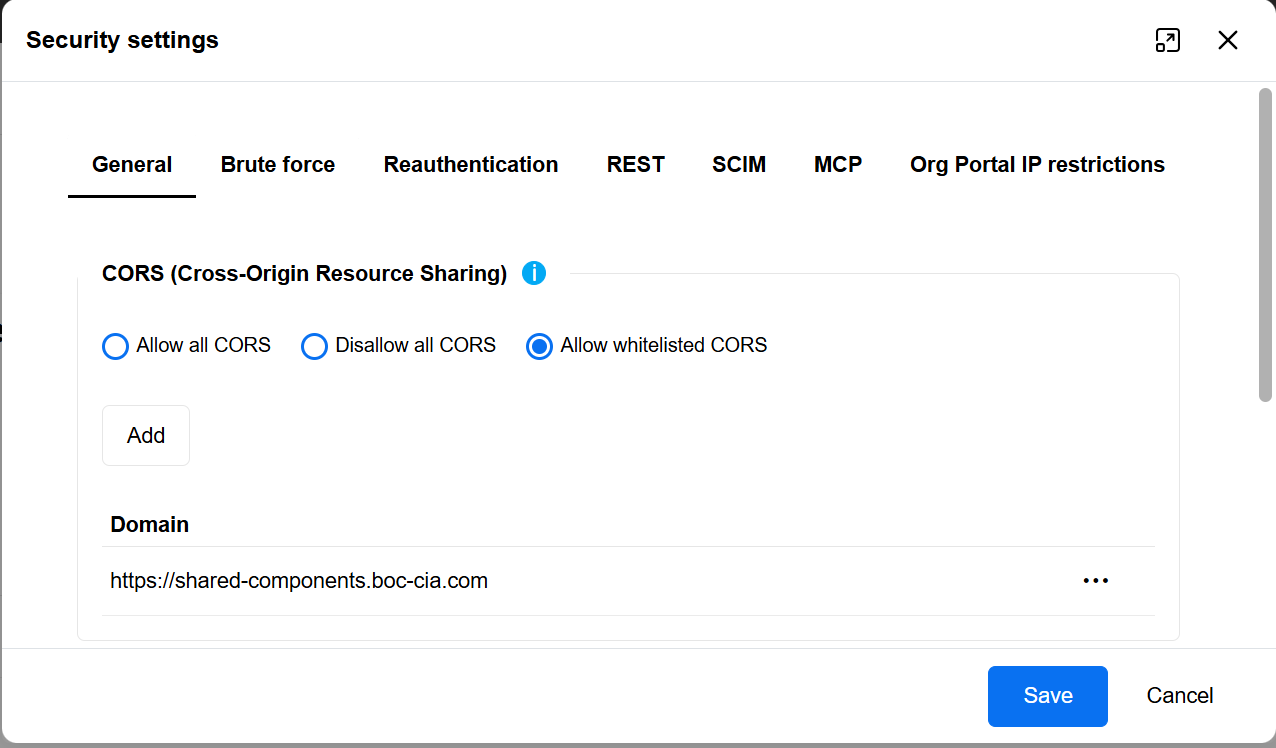

The latest ADONIS versions support the configuration of CORS settings via Authentication Configuration settings on the web admin page (./admin.view).
Once logged in to the admin page, navigate to Authentication and open the Security settings.
In the Security window, "allow_cors:" has to be set to "true" twice and confirmed by Save changes.
4. Installation of the ADONIS Process Manager for SharePoint app in SharePoint Online
This chapter describes the steps to install the ADONIS Process Manager for SharePoint app in Microsoft SharePoint Online. You can either
- As a user: Search for the ADONIS Process Manager for SharePoint app on Microsoft AppSource and click Get it now. You will get redirected to the SharePoint Store where you have to Request the app. Your SharePoint administrator can continue then with the needed steps to install the app.
- As a SharePoint admin: Open your SharePoint Admin Center and navigate to the SharePoint Store. Search for the ADONIS Process Manager for SharePoint app and Add to Apps site. You can add the app to all sites then and optionally also to Microsoft Teams.
5. Set-up the connection from your SharePoint instance to your ADONIS instance(s)
After the app has been obtained, please directly contact cloud-integration-boc-ag@boc-group.com to provide the following inputs for the Customer Map Service:
URL of your SharePoint instance
URL(s) of your ADONIS instance(s) that should be accessible by ADONIS Process Manager for SharePoint
