The "Design & Document" Scenario

The purpose of the "Design & Document" scenario is to let you model and create transparency in a structured way.

The "Design & Document" Scenario

What you will see on the "Design & Document" start page​

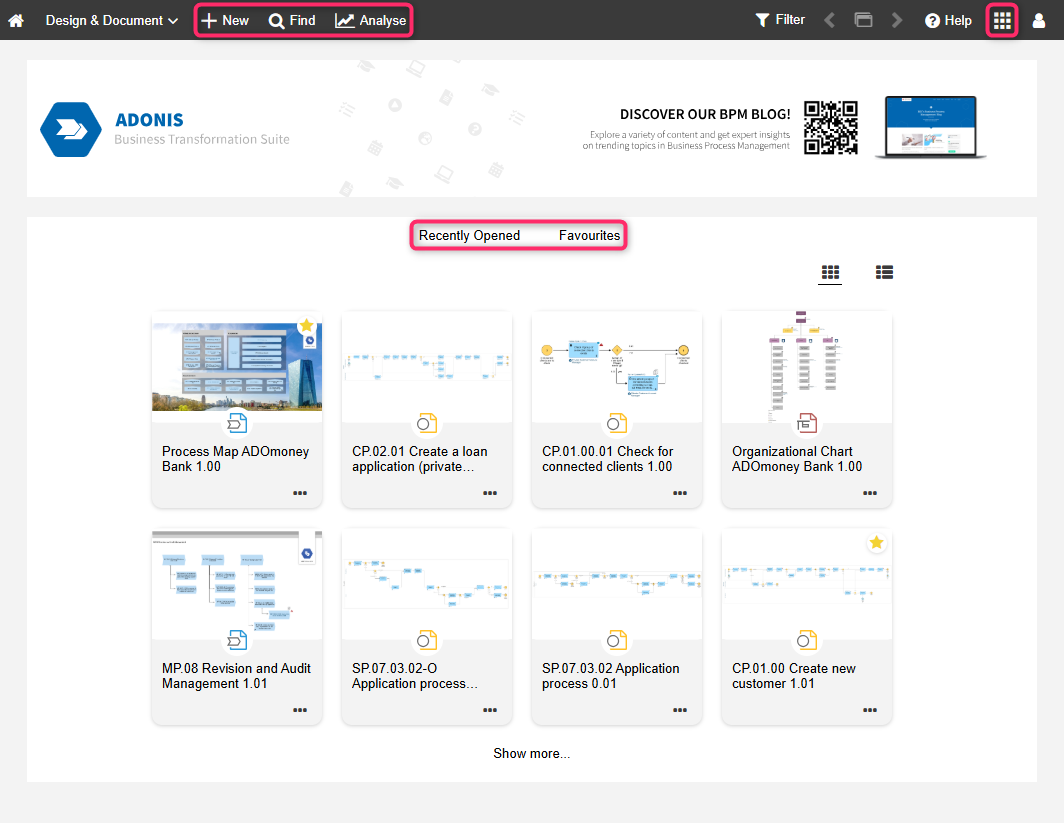

The start page has the following appearance:

  • Banner: The perfect place for an image that represents your organisation. Can be configured in the ADONIS Administration.

  • Recently opened: Your most recently opened models. Sorted by date. To see additional models, click Show more....

  • Favourites: Your favourite models and objects. Sorted alphabetically. To see additional artefacts, click Show more....

View your most recently opened models and favourites as thumbnails or a list. You can easily switch between the two layouts using the Show list and Show tiles icons.

Additional Options​

The toolbar at the top of the screen provides access to some of the most used features in ADONIS:

  • New : Create new models and objects.

  • Find : Open the Explorer and the search function in ADONIS. Multiple search and filtering options help you quickly find the artefact you are looking for.

  • Analyse : This page has three sections by default: Analyses, Reports and Dashboards. Use the quick links at the top of the page to access these sections. The Analyses section serves as a starting point to run analyses on a data set of your choice. The Reports section shows the Reporting Board, where PDF and RTF reports can be created. The Dashboards section provides access to the My Processes & Assets, Initiatives, Risks, Compliance and News and Tasks dashboards.

ADONIS Apps​

If your licence allows it, you can access add-ons and extensions for ADONIS via the ADONIS apps button in the top right corner of the screen. Here are the ADONIS apps that you can use with ADONIS 17.0:

  • Process Drafter: Create process models step by step in a tabular view. The Process Drafter is included for all ADONIS Enterprise Edition customers at no extra cost.

  • ADONIS Process Mining Essentials (PME): Use powerful process mining capabilities to uncover how your processes actually run. PME is a licensable add-on for the ADONIS Enterprise Edition.

My Processes & Assets​

This dashboard contains the following widgets:

Processes​

This widget provides a detailed overview of your processes. It lists all Business Process Diagrams, Process Landscapes and Process objects for which you are responsible. The processes are grouped by type and sorted alphabetically.

Select Properties​

By default, the following properties are listed for each process:

  • State

  • Process type

  • Key process

  • Date of last change

  • Valid from

  • Valid until

  • Resubmission date

You can hide select properties and show additional properties:

  • Click the More button at the top right corner of the widget, point to Show/hide columns, and then select the properties you want.
Filter Processes​

You can define what data is displayed in the "Processes" widget. This selection also determines which data is used as the basis for creating the charts in the "Statistics for my Responsibilities" and "Process Classification & Process Potential Analysis" widgets. To only display certain processes:

  • Click the More button at the top right corner of the widget, point to Process responsibilities, and then select the filter you want.

All is the default filter. It lists all Business Process Diagrams, Process Landscapes and Process objects:

  • For which you are assigned as Process owner, Process manager, Methodical reviewer or Process analyst/designer (properties in the chapter "Organisation").

You can focus on one of these properties by using the Process owner, Process manager, Methodical reviewer and Process analyst/designer filters.

Statistics for my Responsibilities​

This pie chart shows the distribution of version states for your processes. It contains all Business Process Diagrams, Process Landscapes and Process objects for which you are assigned as Process owner or Process analyst/designer (properties in the chapter "Organisation").

By clicking a segment of the pie, you can highlight the corresponding Business Process Diagrams and Process Landscapes in the Processes widget.

Process Classification​

The radar chart Process Classification helps to analyse and classify your processes based on the properties Predictability, Complexity, Process frequency, Business value and Process type.

Process Potential Analysis​

The radar chart Process Potential Analysis helps to analyse improvement potential in your processes based on a simple as-is assessment of the properties Quality, Cycle time, Cost efficiency, Customer satisfaction, IT support, Compliance, Risk management and Process management maturity.

My Assets​

This widget provides a quick overview of your assets. It lists all repository objects for which you are assigned as Responsible person (property in the chapter "Organisation").

Assets are grouped by type and sorted alphabetically. You can quickly evaluate the data actuality of your assets and generate reports.

KPI Overview​

This bar chart allows you to find out quickly if your Performance Indicators meet their target values (based on an assessment of properties in the chapter "Details").

note

More information about the calculation logic can be found in the info texts of the properties in the chapter "Details".

KPIs​

This widget provides a detailed overview of your Performance Indicators.

Filter KPIs​

You can define what data is displayed here in the "KPIs" widget and in the "KPI Overview" widget. To only display certain Performance Indicators:

  • Click the More button at the top right corner of the widget, point to Ownership, and then select the filter you want.

KPIs (My) lists all Performance Indicators for which you are assigned as Responsible person (property in the chapter "Organisation").

KPIs (In my processes) lists all Performance Indicators in Business Process Diagrams and Process Landscapes:

  • For which you are assigned as Process owner, Process manager, Methodical reviewer or Process analyst/designer (properties in the chapter "Organisation").

KPIs (My & In my Processes) combines both options.

Initiatives​

This dashboard contains the following widgets:

My Initiatives Statistics​

The pie chart Initiative Progress provides an overview of the progress of your Initiatives. The progress is calculated automatically based on a comparison of the "as is" state against the "to be" state of the time, costs and efforts spent on an Initiative (property Progress (Automatic) in the chapter "Controlling - Initiative").

The bar chart Initiative states categorizes your Initiatives based on their State (property in the chapter "Controlling - Initiative").

My Initiatives - Radar​

This radar chart helps to analyse and classify your Initiatives based on the properties Planned costs, Current costs, Planned effort, Current effort and Degree of completion (properties in the chapters "General information" and "Controlling - Initiative").

My Initiatives​

This widget provides a quick overview of your Initiatives. It lists all Initiatives for which you are assigned as Responsible person (property in the chapter "Organisation").

You can see at a glance the progress of the Initiatives listed here. Additionally, you can quickly evaluate the data actuality of the listed Initiatives.

Risks​

This dashboard contains the following widgets:

ICS Statistics​

The first pie chart in this widget shows the distribution of risk assessment values for your Risks. The Value at risk is calculated based on the Likelihood, Impact and Detection values of a Risk (properties in the chapter "Risk assessment").

The second pie chart shows the distribution of Control methods for your Controls (property in the chapter "General information").

Risk Management Indicators​

The first indicator gauge in this widget shows the average value of the Value at risk property across your Risks (property in the chapter "Risk assessment").

The second and third indicator gauges show the average values of the Design Effectiveness and Operating Effectiveness properties across your Controls (properties in the chapter "Control assessment").

My Risks​

This widget provides a quick overview of your Risks. It lists all Risks for which you are assigned as Responsible person (property in the chapter "Organisation").

The risks are grouped according to their Risk Group (property in the chapter "General information").

You can see at a glance the severity of the Risks listed here. Additionally, you can quickly evaluate the data actuality of the listed Risks.

Control Frequency​

This bar chart categorizes your Controls based on the Frequency of control execution (property in the chapter "General information").

My Controls​

This widget provides a quick overview of your Controls. It lists all Controls for which you are assigned as Responsible person (property in the chapter "Organisation").

Additonally, you can quickly evaluate the data actuality of the listed Controls here.

Compliance​

This dashboard contains the following widgets:

Compliance Statistics​

The pie chart Action required shows for all combinations of Control Objectives and assets to what extent there is a need for action (property Action required of the reference Assigned control objectives, chapter "General information").

The bar chart Maturity Assessment provides an overview of the maturity level of your Control Objectives by evaluating their assets according to specific categories: undermatch, match, overmatch. The maturity level is calculated automatically based on a comparison of the "as is" state against the "to be" state (properties As-is maturity level and To-be maturity level of the reference Assigned control objectives, chapter "Maturity Assessment").

My Control Objectives​

This widget provides a quick overview of the assets of your Control Objectives. It lists the assets of all Control Objectives for which you are assigned as Responsible person (property in the chapter "Organisation").

Assets are repository objects which are connected to your Control Objectives by the reference Assigned control objectives. In the widget, the assets are grouped according to their Control Objective.

For each combination of Control Objective and asset, you can see whether an action is required and what the maturity assessment of that combination is (properties of the reference Assigned control objectives, chapters "General information" and "Maturity assessment"). Additionally, you can quickly evaluate the data actuality of the listed assets.

News and Tasks​

This dashboard provides a detailed overview of the most recent changes in models and objects in the database and your tasks.

Task Options​

In order to access the task options:

  • Click the widget title (button ) to open a drop-down menu.

The drop-down menu offers the following options:

  • Create new task

  • Mark selected task(s) as read

  • Mark selected task(s) as unread

  • Hide or show done tasks

  • Mark selected task(s) as done

  • Mark selected task(s) as undone

  • Delete selected tasks
