ADONIS integration

The ADONIS Process Mining Essentials add-on enables seamless integration between your process mining projects and ADONIS, allowing you to display process mining metrics directly within the Insights dashboard of a Business Process Diagram.

Prerequisites​

Before you begin, ensure the following:

  • A Business Process Diagram has been created or imported in ADONIS.
  • A process mining project has been set up in ADONIS PME.

To connect a process mining project to a Business Process Diagram, follow these steps:

  1. Go to the project dashboard of the ADONIS PME add-on and locate the project you want to link to the Business Process Diagram.

  2. Click the More button More button on the project tile, and then select Copy project ID.

  3. Close the ADONIS PME add-on and navigate to your Business Process Diagram in ADONIS.

  4. Open the properties of your Business Process Diagram in edit mode and switch to the Process automation chapter.

    • If this chapter is hidden, click the Properties filter button Properties filter button and select Show all to make it visible.

  5. Paste the copied project ID into the Process mining project field and save the model.

Pasting project ID

View Process Mining Metrics​

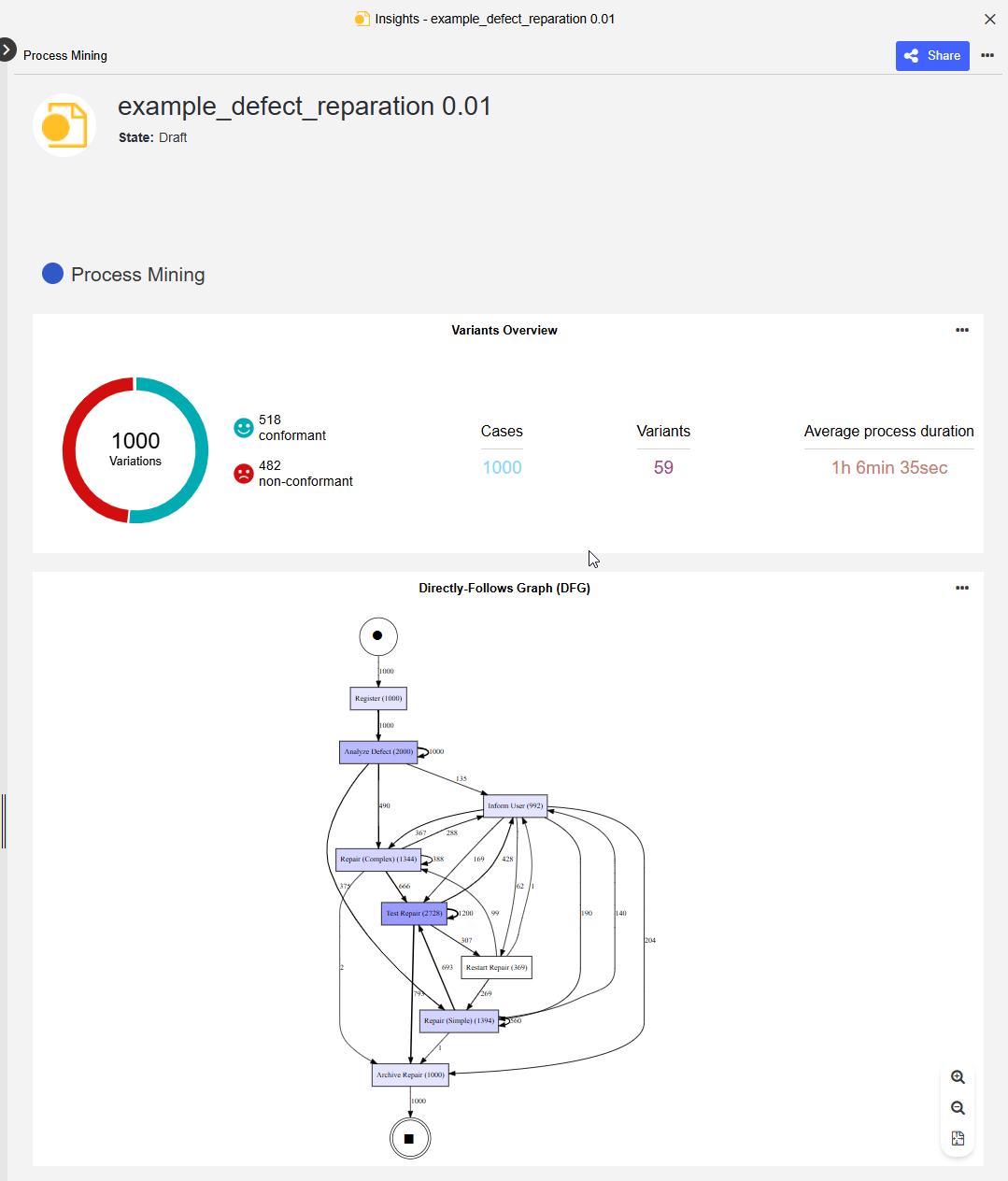

Once the connection is established, ADONIS will automatically retrieve data from ADONIS PME. The Insights dashboard of your Business Process Diagram will now be extended with relevant process mining metrics.

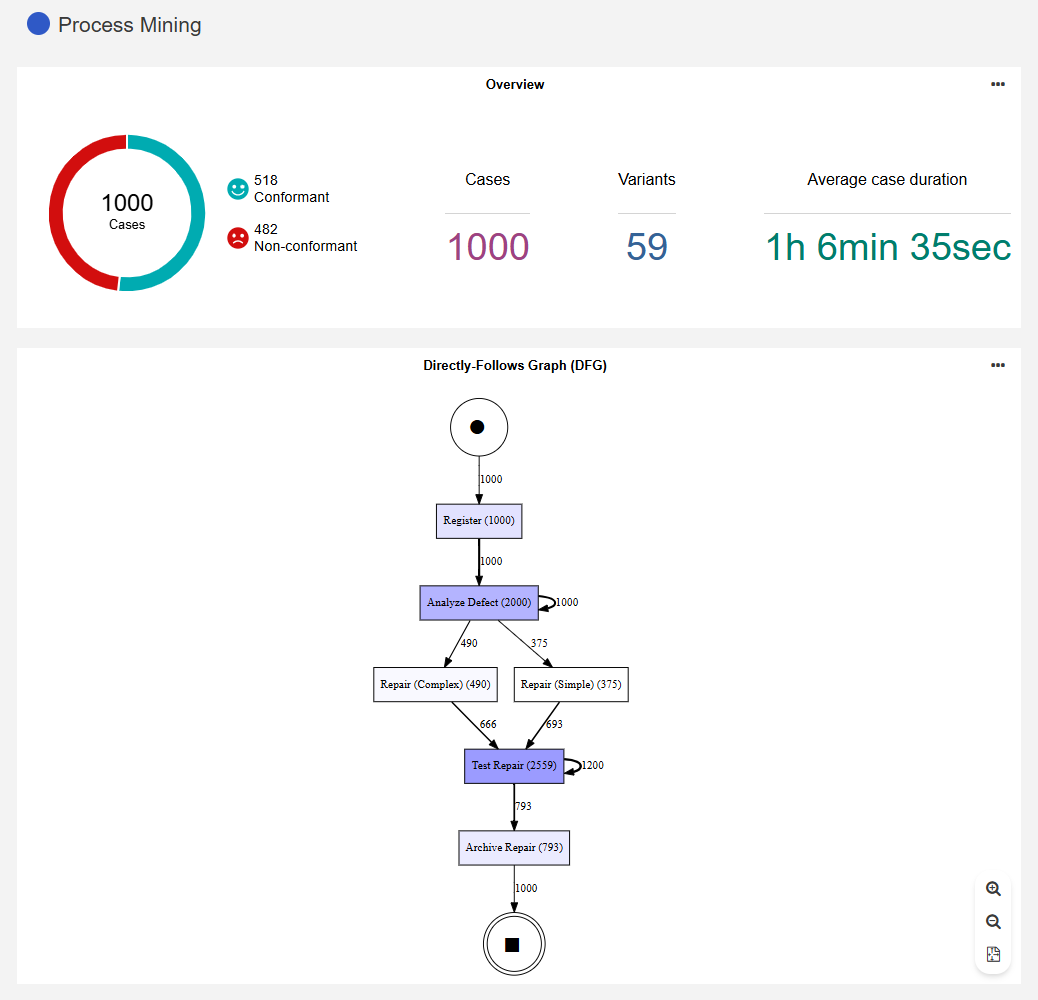

PME in Insights dashboard

To view the metrics:

  1. Open the Insights dashboard:

    • Right-click the model, point to Open, and then click Insights icon Insights.

    • Alternatively, if you already have the model open in ADONIS, click the Insights button in the menu bar of the model.

  2. Review the following widgets in the Process Mining section:

    • Variants Overview: Displays key metrics of your process mining project, such as variations (conformant and non-conformant) and cases.

    • Directly-Follows Graph (DFG): Showcases the DFG, offering a clear visual representation of the immediate transitions between activities within the process.

  3. The following options are available for these widgets:

    • Open process mining project: To directly jump to the project in PME, click the More button More button in the top right corner of the widget, and then select Open details.

    • View info text: To show a tooltip with information about the widget, click the More button More button in the top right corner of the widget, and then select Info.
